Clutch Assembly for Vespa PX 150
MREV-P-000089Clutch Assembly for Vespa PX 150: A clutch component made from 40Cro-Mo alloy steel. Select the correct engine type and clutch assembly currently fitted to the bike. Select a component compatible with the friction plates and springs.

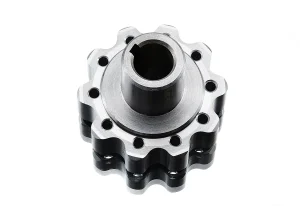

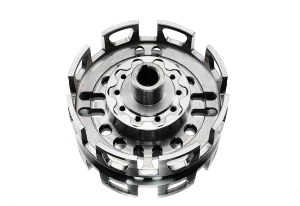

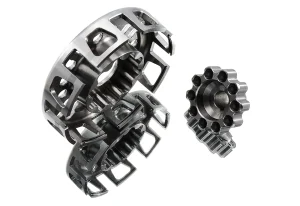

Clutch Assembly for Vespa PX 150 is a replacement part for the clutch assembly on Vespa PX 150. The machined components pictured transmit drive between the engine and gearbox, where clutch engagement and disengagement must follow the rider's input.
What does alloy steel contribute?
The machined section uses 40Cro-Mo alloy steel. This material suits load-bearing mechanical parts, while the holes, grooves and contact surfaces must match the clutch fitted to the bike. If the clutch slips or engages unevenly, inspect the friction plates, steel plates, springs and oil as well as the body and basket. Engagement depends on the complete assembly working together.
When should the complete assembly be replaced?
If several parts are worn, replacing them with a compatible assembly can help avoid dimensional mismatches between old and new components. If only a plate or spring is damaged, check the supplied-parts list before choosing a replacement. For a PX 150 with a non-stock clutch drum or clutch assembly, compare the actual plate count, diameter, height, spline profile and retaining arrangement.
